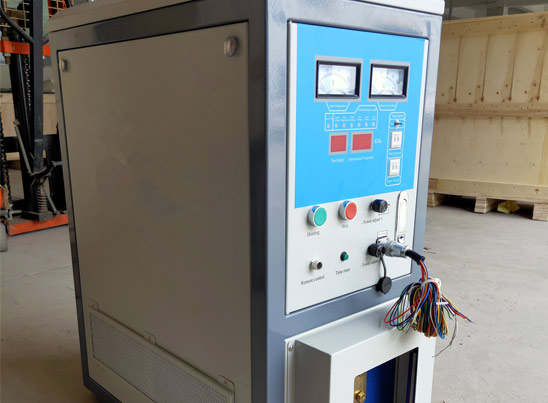

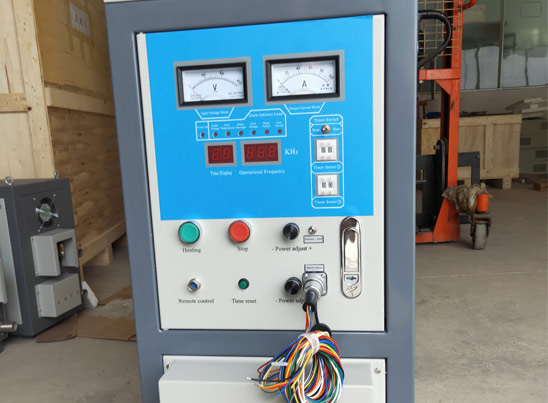

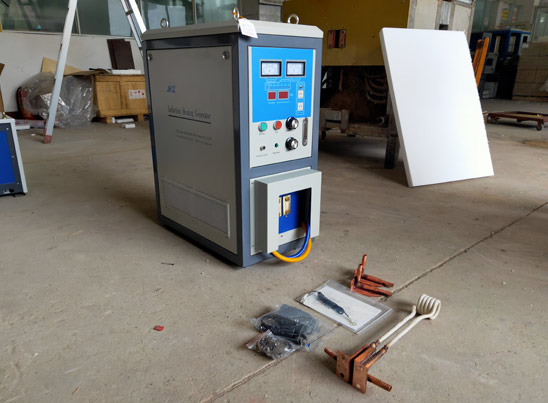

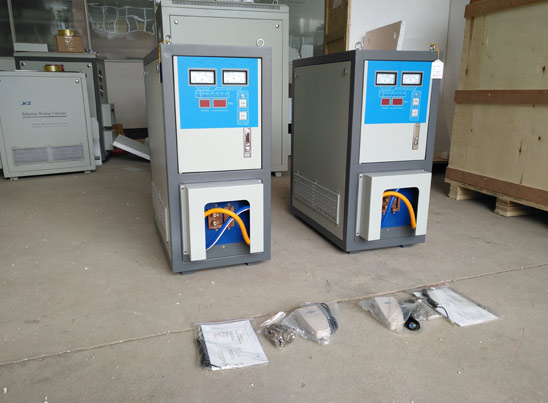

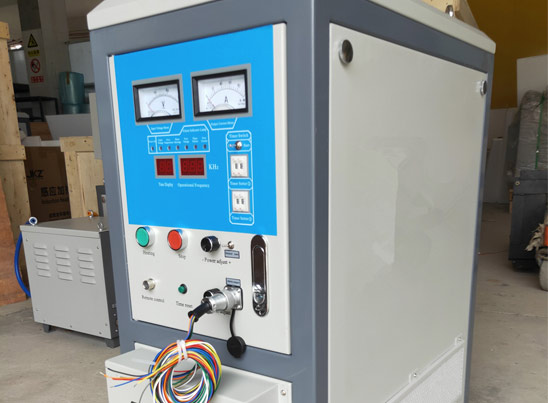

SWS-25A 15-30KHZ 25KW 36A Ultrasonic Frequency Induction Heating Machine

To realize the better performance of SWS-25A, JKZ has designed a fully digital control induction heating generator at the frequency range of 15~30KHz. It is designed with a maximum single machine power of 250KW and can be integrated with a state monitoring system. After a long time of production and use, the circuit of our SWS-25A is still reliable and stable, and the maintenance is simple and convenient.

The induction heating speed of this metal heating machine is fast and the energy-saving effect is obvious. The equipment can be equipped with a variety of remote control methods, which significantly reduces the difficulty of automatic control. It runs fully automatically under the control of external systems such as PLC and is suitable for use in induction forging and induction heat treatment applications.

Send Inquiry

Specifications of SWS-25A Ultrasonic Frequency Induction Heating Machine


Input voltage

3 Phases 380V±10%  50/60HZ

Input AC current

36A

Output power

25KW

Output frequency

15-30KHZ

Duty cycle

100%

Power factor

≥95%

Cooling water pressure

0.2-0.3 MPa

Cooling water flow

≥1.7 m³/Hour


*Slide to find out more.

Application of SWS-25A Ultrasonic Frequency Induction Heating Machine


  • Brazing of carbide length 20-60mm

  • Welding of copper tube Ø15mm-Ø30mm

  • Melting of 15-20KG non-ferrous metal

  • Forging heating steel rods Ø10-30mm

  • Hardening steel rods Ø10-30mm at depth 2-5mm
