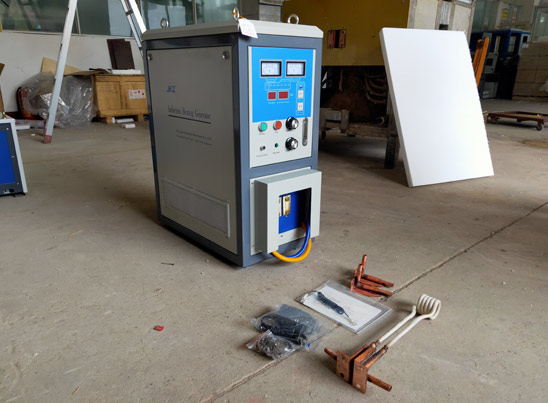

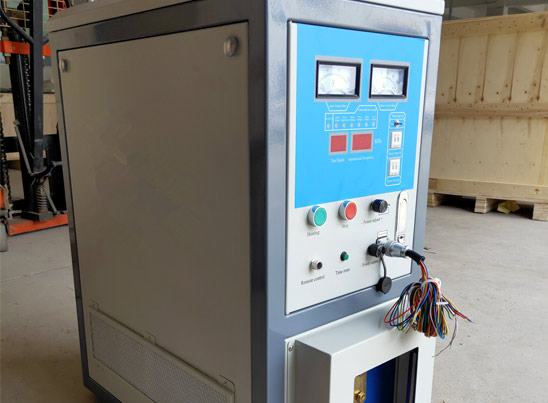

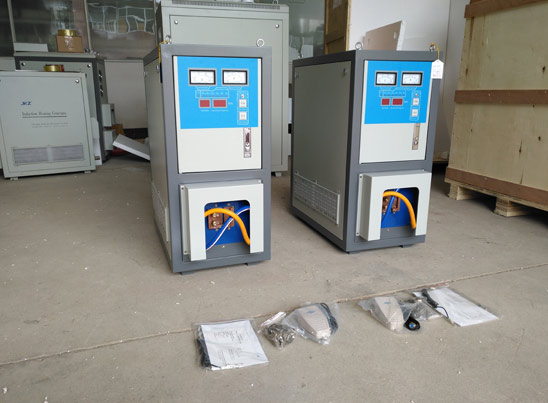

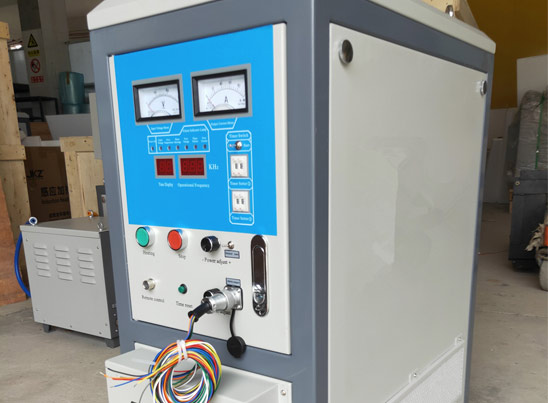

SWS-40A ultrasonic frequency induction heating machine is JKZ'S full digital designed control induction heating generator at the frequency range of 15-30KHZ, and its maximum output power is 40KW.
The inner state monitoring system of this ultrasonic frequency device can feedback the machine working situation and realize self-protection. With long time experience in production and usage, the machine circuit is reliable and stable, and the maintenance is easy and convenient.
This type of induction heating inverter is also featured with the advantages of fast heating speed and energy-saving effect.

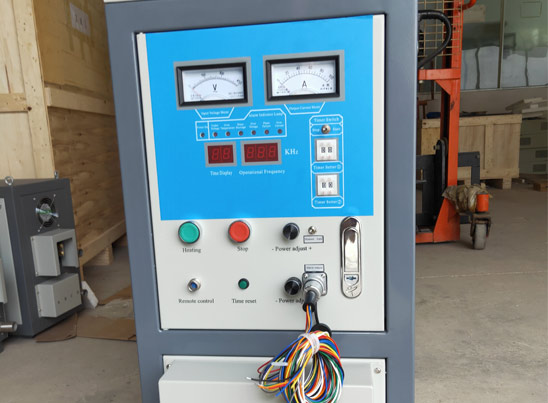

SWS-40A can be flexible equipped with a variety of remote control design, which allows remote control of the system work/stop/power/monitor. It greatly reduces the difficulty of automatic control. The external PLC control system makes the system fully runs automatically, and let it suitable for use in the billets induction forging preheating and induction heat treatment applications.
Input voltage | 3 Phases 380V±10% 50/60HZ |
Input AC current | 60A |
Output power | 40KW |
Output frequency | 15-30KHZ |
Duty cycle | 100% |
Power factor | ≥95% |
Cooling water pressure | 0.2-0.3 MPa |
Cooling water flow | ≥2.7 m³/Hour |
Brazing of carbide length 20-60mm
Welding of copper tube Ø15mm-Ø30mm
Melting of 15-20KG non-ferrous metal
Forging heating steel rods Ø10-30mm
Hardening steel rods Ø10-30mm at depth 2-5mm
