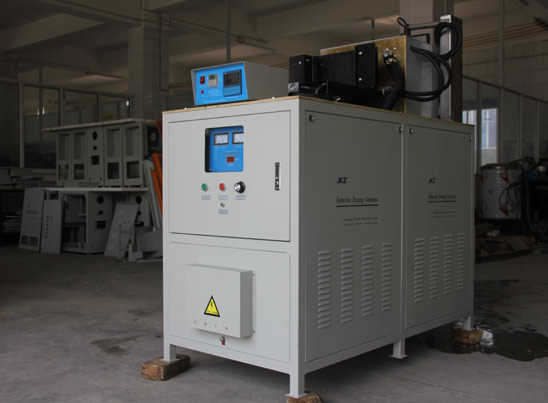

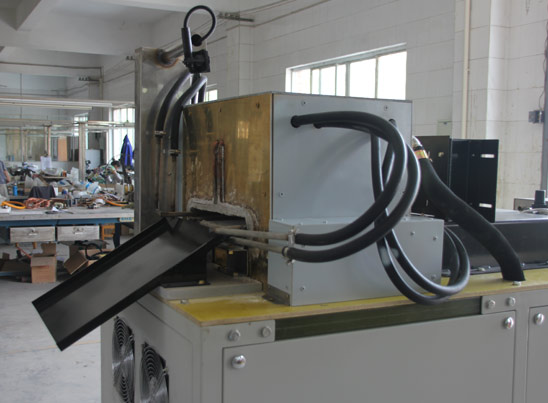

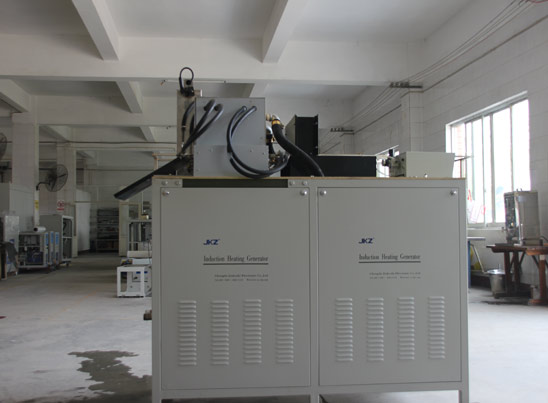

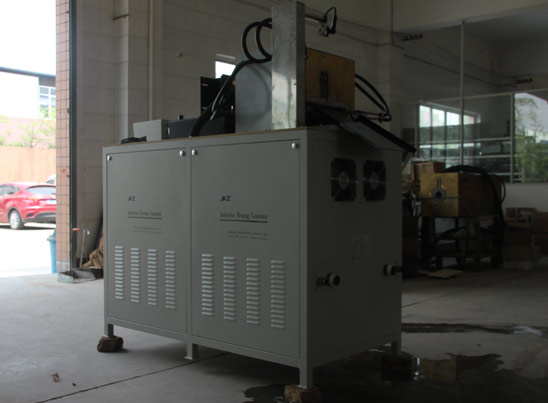

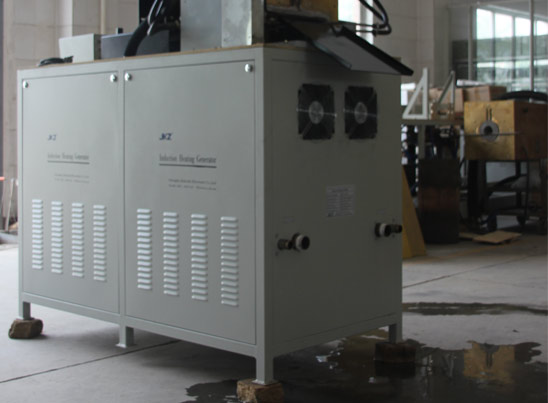

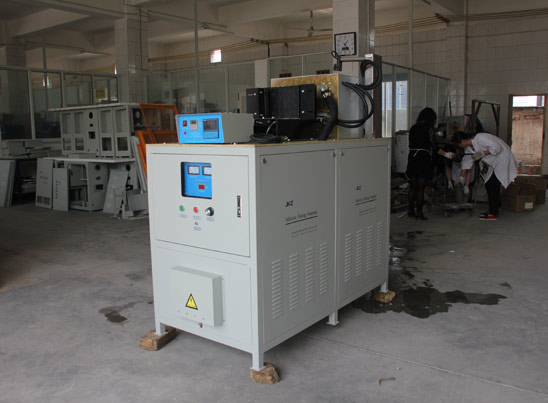

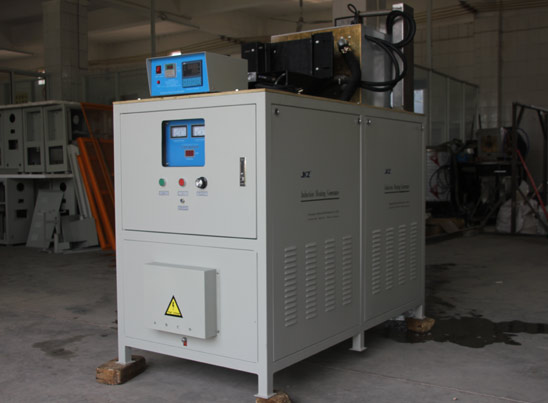

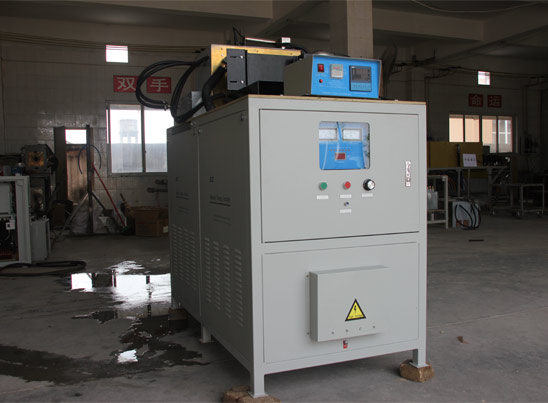

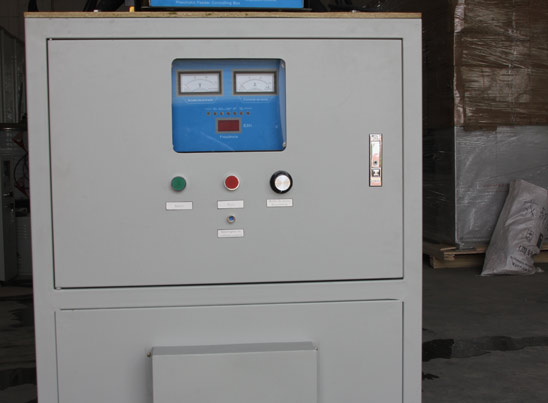

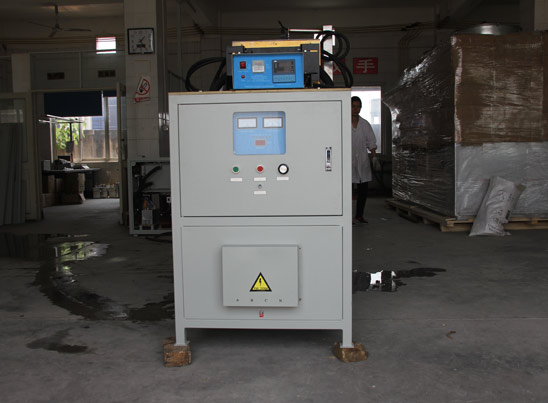

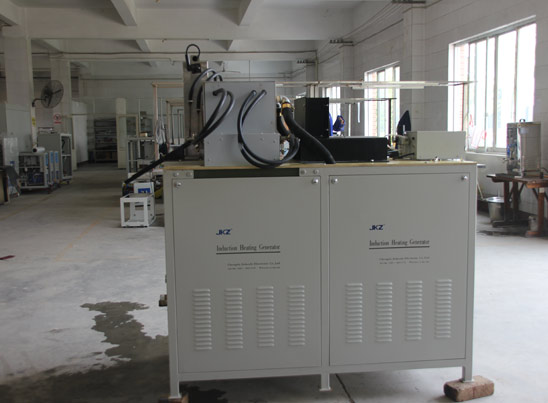

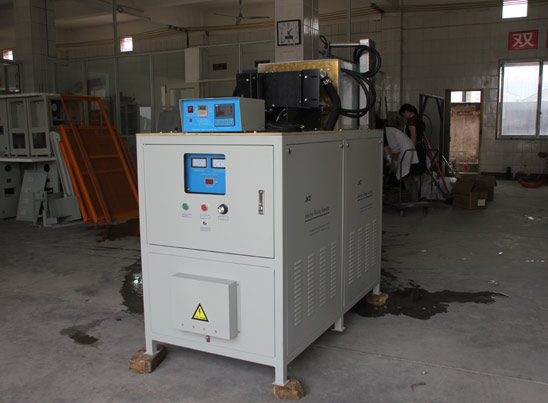

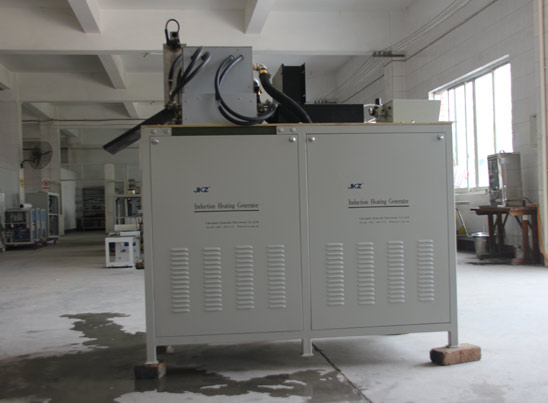

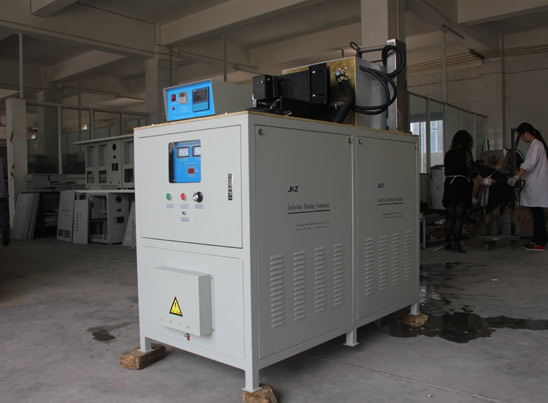

MFS-120A Medium Frequency Induction Heating Machine

MFS-120A 1-8KHZ 120KW 182A Medium Frequency Induction Heating Machine

Name: MFS-120A
Brand: Chengdu Jinkezhi Electronic Co., Ltd.

MFS-120A induction heating power supply adopts IGBT as the core component. As a medium frequency induction heating machine, MFS-120A has an output frequency ranging from 1KHZ to10KHz, and the single machine power is up to 600kw (3Phases~380v).

This MFS machine is suitable for billets hot forging heating, induction heat treatment and other application fields of slightly larger workpieces. It adopts a fully digital control circuit.

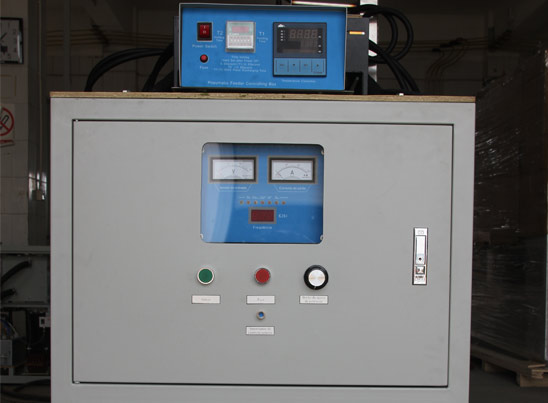

HMI adopts touch screen to reduce the difficulty of the operation and provides vertical or horizontal design according to the customer's on-site space to facilitate customer's on-site installation and operation.

Send Inquiry

Specifications of MFS-120A Medium Frequency Induction Heating Machine

Input voltage	3 Phases 380V±10% 50/60HZ
Input AC current	182A
Output power	120KW
Output frequency	1-8KHZ
Duty cycle	100%
Power factor	≥95%
Cooling water pressure	0.2-0.3 MPa
Cooling water flow	≥8.2 m³/Hour

*Slide to find out more.

Application of MFS-120A Medium Frequency Induction Heating Machine

Forging: suitable for forging of steel, stainless steel, copper and aluminum Ø40mm-Ø60mm
Hardening: suitable for hardening depth of 5-10 mm of Ø60-Ø160mm steel bar
Melting: suitable for smelting 100-160 kg of non-ferrous metals
