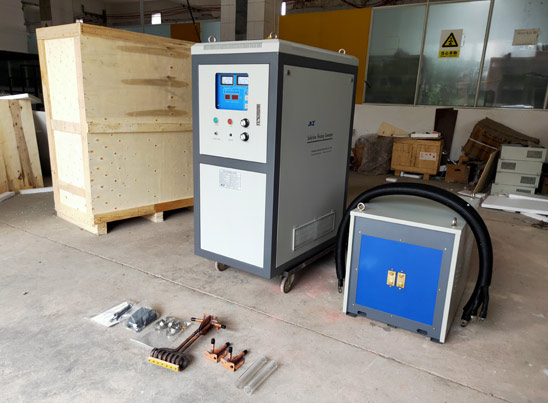

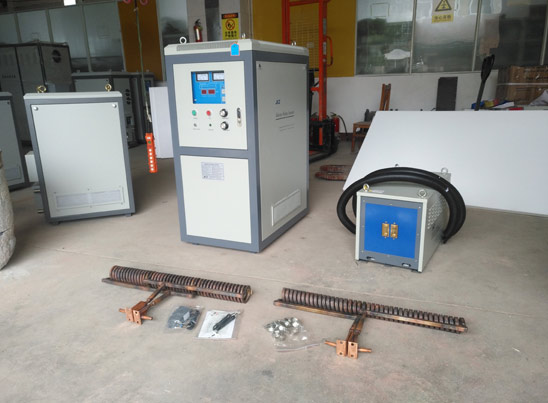

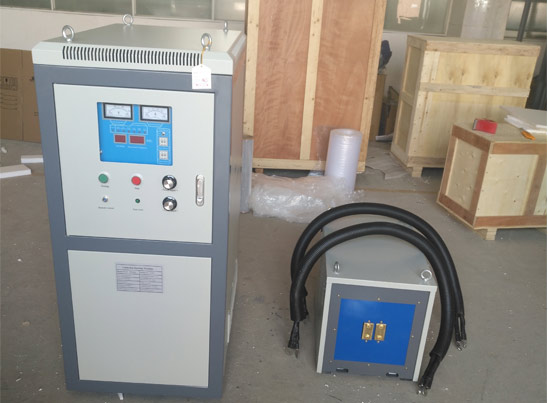

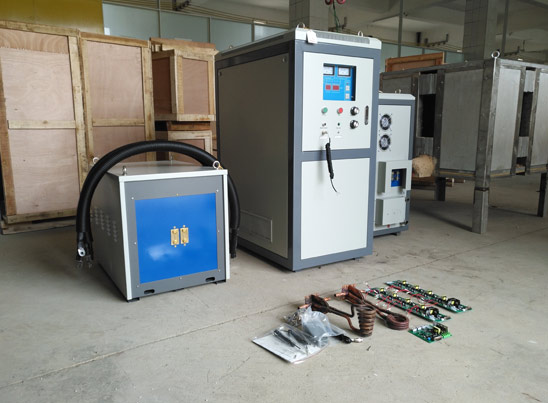

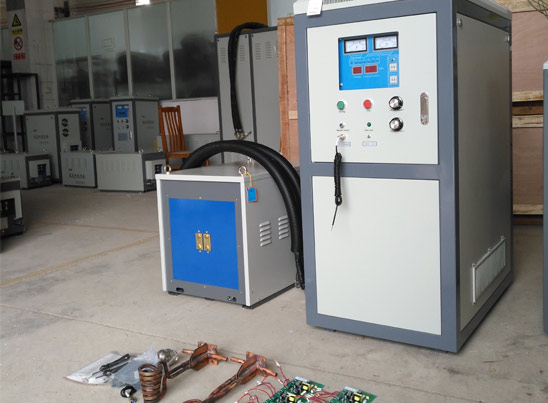

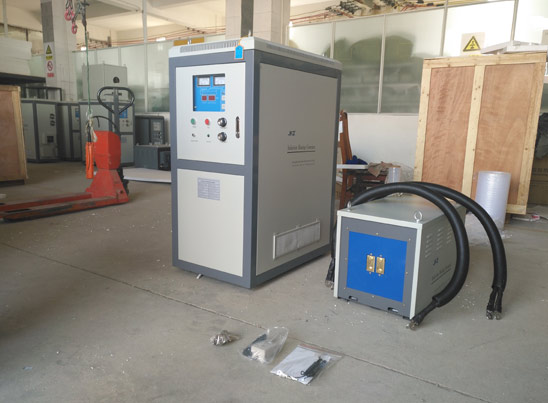

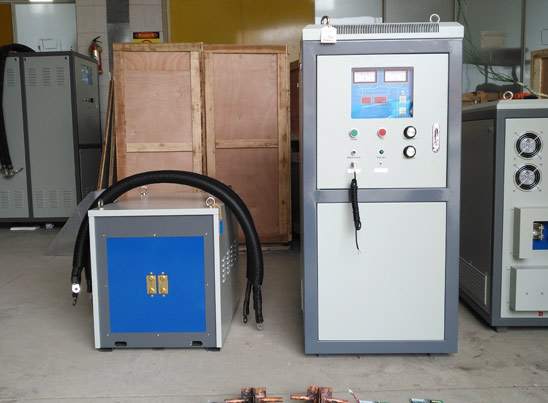

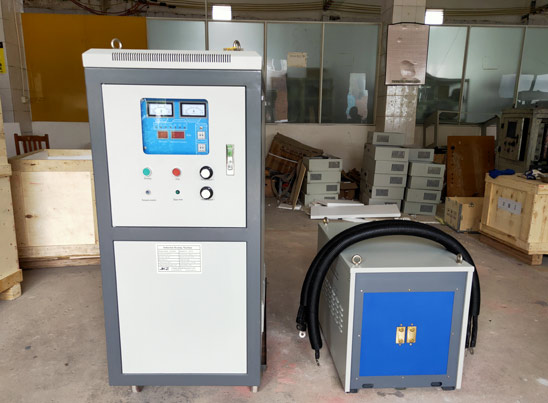

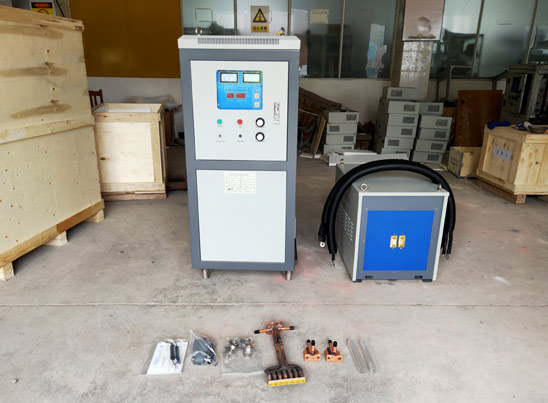

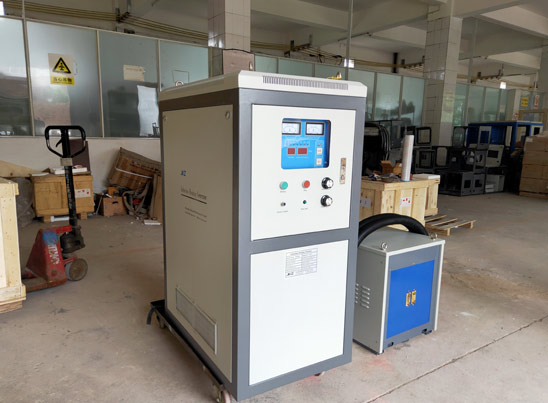

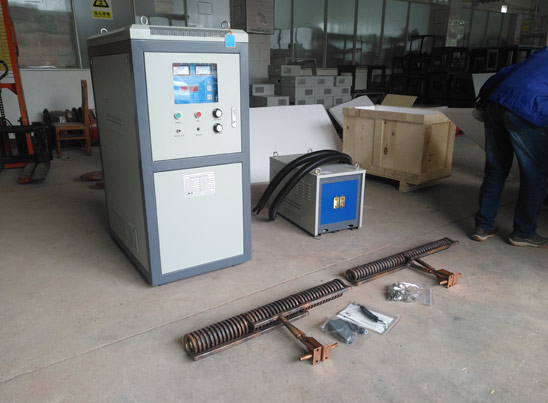

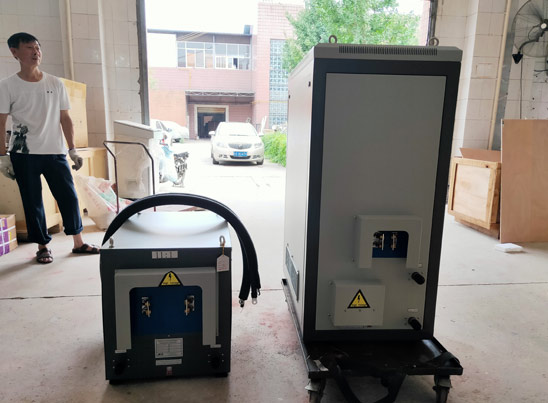

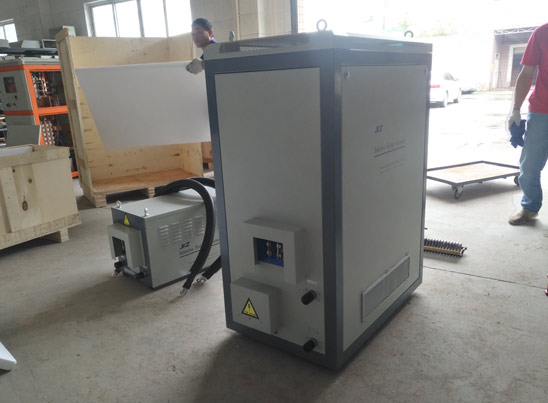

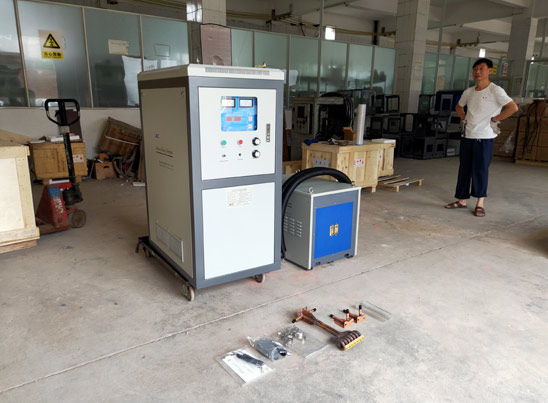

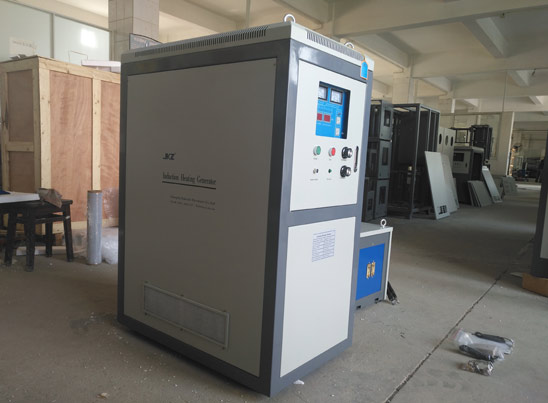

SWS-160A 15-30KHZ 160KW 250A Ultrasonic Frequency Induction Heating Machine

SWS-160A is the 160KW supersonic frequency induction heating equipment. It can work at the maximum power of 160KW and its frequency ranges from 15 to 30KHZ. Wih its digital design control system, SWS-160A can display the working voltage, current, working frequency and indicate the error. Its compact design makes small installation space and flexible working environment available. As a professional induction heating machine manufacturer, JKZ has also applied the mature and reliable IGBT series resonant design into the design of the circuit of SWS-160A.  The maintenance of SWS-160A is convenient and simple. Any non-professional operator can handle it.

Furthermore, the fast heating and high power features of SWS-160A has also made itself one of the most energy-saving heating methods compare with all the electric heating systems. The induction generator of SWS-160A allows the equipment of remote control systems according to customers' request for actual usages, such as  0-10V/4-20mA power control interface, RS485 and RS232. This machine can also work automatically under the external control system and is suitable for different applications such as billets heating, auto parts heat treatment.

Send Inquiry

Specifications of SWS-160A Ultrasonic Frequency Induction Heating Machine


Input voltage

3 Phases 380V±10%  50/60HZ

Input AC current

250A

Output power

160KW

Output frequency

15-30KHZ

Duty cycle

100%

Power factor

≥95%

Cooling water pressure

0.2-0.3 MPa

Cooling water flow

≥11 m³/Hour


*Slide to find out more.

Application of SWS-160A Ultrasonic Frequency Induction Heating Machine


  • Forging: suitable for forging of steel, stainless steel, copper and aluminum Ø20mm-Ø40mm

  • Hardening: suitable for hardening depth of 2-5 mm of Ø60-Ø120mm steel bar
