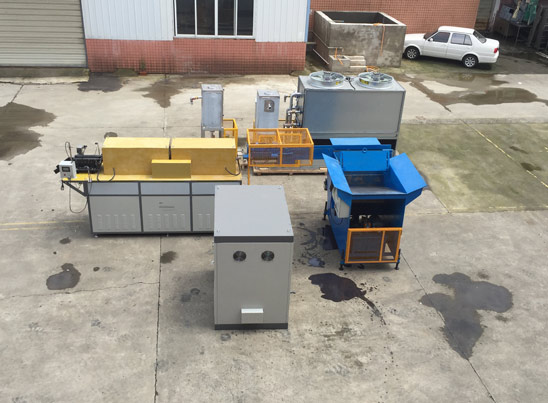

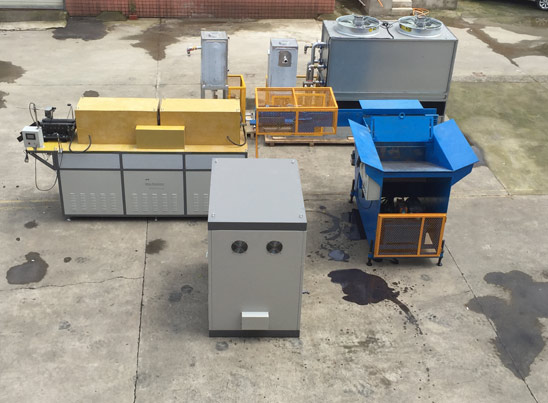

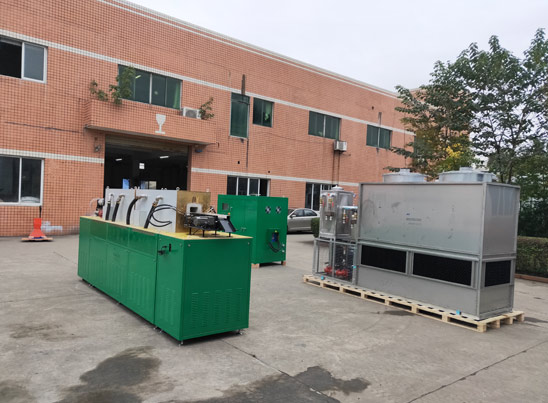

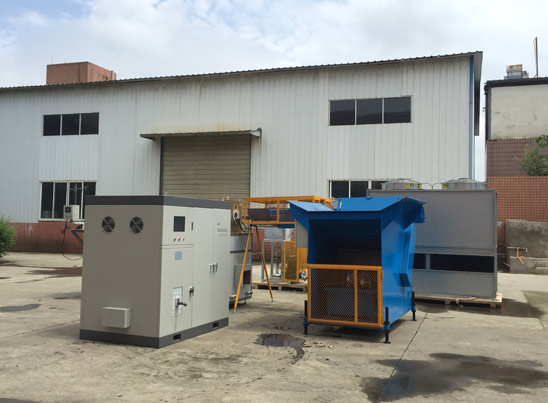

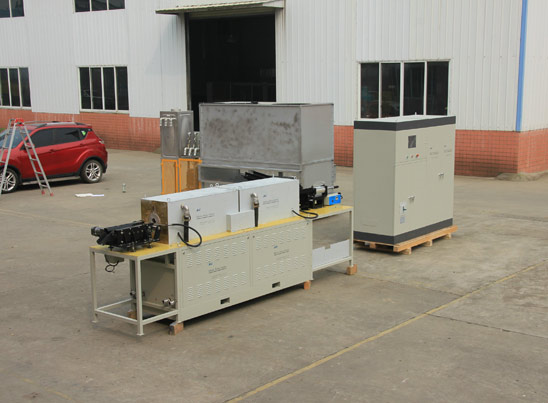

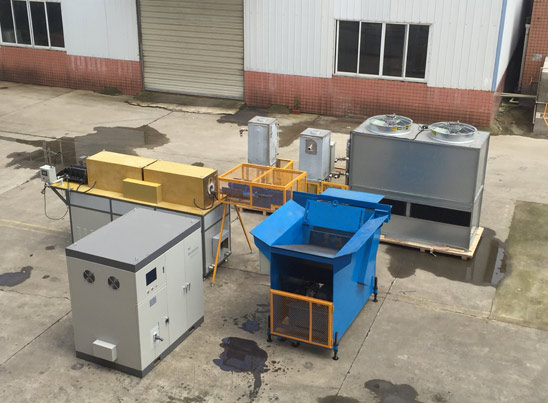

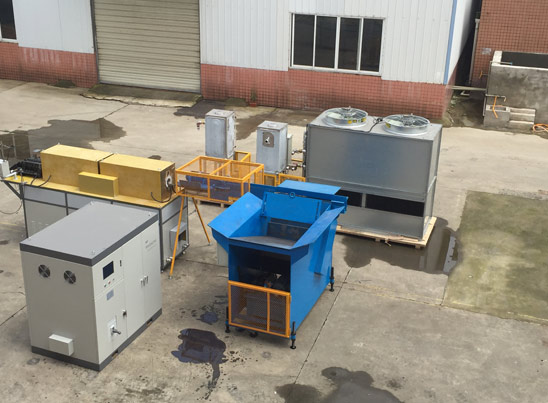

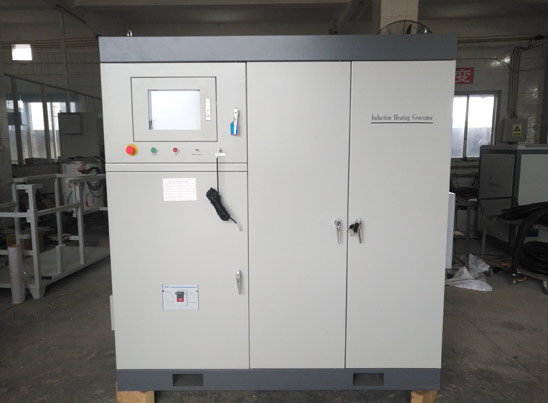

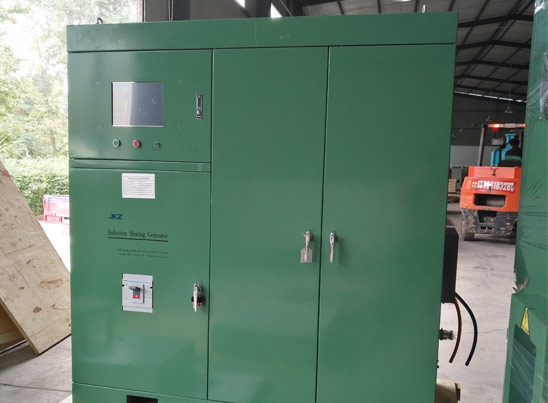

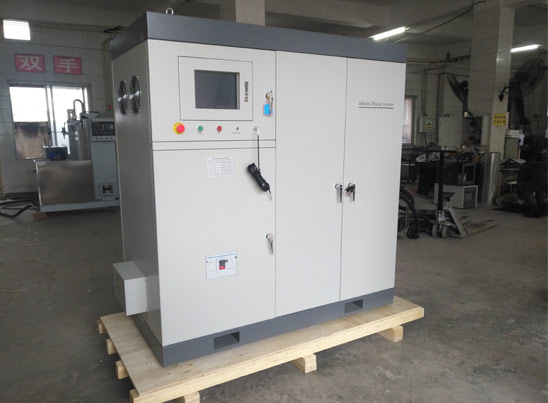

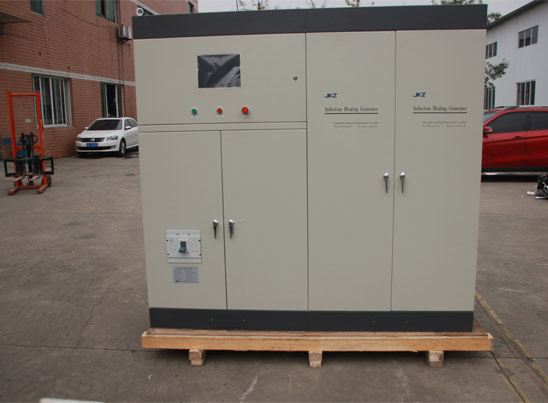

MFS-300A Medium Frequency Induction Heating Machine

MFS-300A 1-8KHZ 300KW 460A Medium Frequency Induction Heating Machine

Name: MFS-300A
Brand: Chengdu Jinkezhi Electronic Co., Ltd.

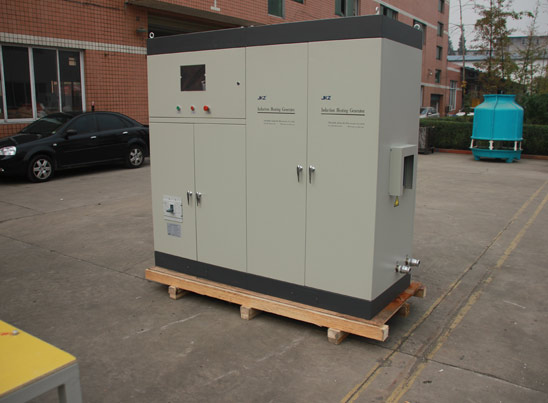

MFS-300A induction heating equipment is an IGBT type medium frequency induction heating furnace. The maximum output power of this machine is 300KW, and its working frequency is at the range of 1-10KHZ. Normally, the actual working frequency is determined by the heating coil and capacitor, which matches with the billets dimensions. While the IGBT heat sink of MFS-300A is made of pure copper, the internal connection structures are made of pure copper panels, high-strength rubber pipes, and stainless steel pipes for water pipelines. And these designs have successfully ensured the reliable quality and long service life of this machine.

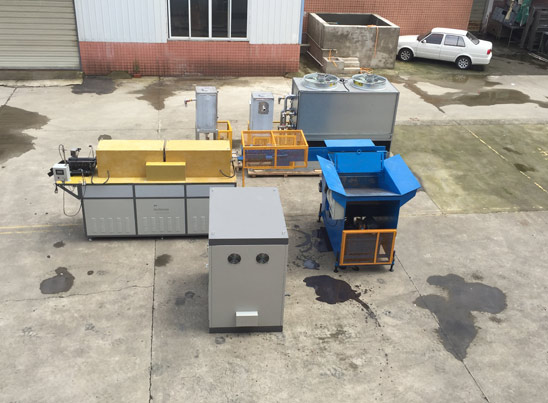

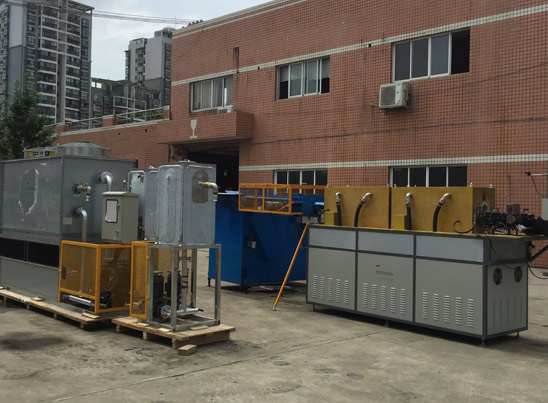

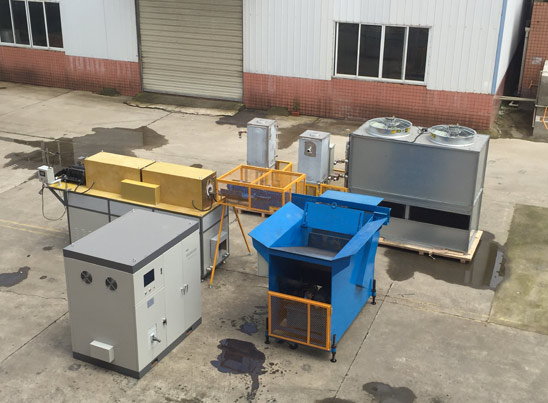

Regarding its application, this medium frequency induction furnace is mainly used in industries for forging preheating, springs production, auto parts making, bolts/nuts manufacturing, shafts/gears heat treatment, steel/brass melting, and tube bending.

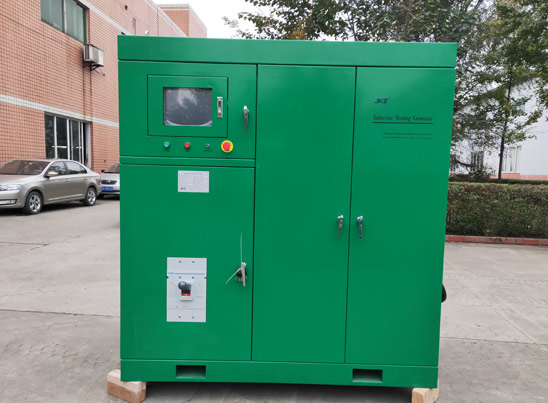

Moreover, this machine also adopts the HMI, with the functions of both manual/automatic control.

Under the manual mode, the operator can set the power output from 0-100%. And under the automatic model, HMI can realize the remote control of the machine by adjusting power/heating time/temperature/heating rate. These functions make the induction heating machine more flexible in site usage.

Send Inquiry

Specifications of MFS-300A Medium Frequency Induction Heating Machine

Input voltage	3 Phases 380V±10% 50/60HZ
Input AC current	460A
Output power	300KW
Output frequency	1-8KHZ
Duty cycle	100%
Power factor	≥95%
Cooling water pressure	0.2-0.3 MPa
Cooling water flow	≥20 m³/Hour

*Slide to find out more.

Advantages of MFS-300A Medium Frequency Induction Heating Machine

Enhanced Efficiency and Speed: The MFS-300A Medium Frequency Induction Heating Machine offers rapid heating, significantly reducing processing time. This efficiency is achieved through precise control of heating parameters, ensuring consistent temperature application. As a result, it minimizes energy waste, increases production rates, and is ideal for applications requiring quick turnaround, such as surface hardening, brazing, and forging.

High Precision and Control: The MFS machine provides precise temperature control, allowing for accurate heating profiles tailored to specific materials and processes. The MFS-300A's advanced control systems ensure uniform heating, reducing the risk of overheating or material distortion. This level of precision enhances the quality of the final product, making it suitable for intricate tasks requiring meticulous temperature management.

Versatility and Adaptability: The MFS-300A is designed to handle a wide range of applications, making it a versatile tool in various industries. Its medium frequency range is effective for heating different metals and alloys, accommodating diverse industrial needs. The MFS machine's adaptability to different workpiece sizes and shapes enhances its utility, offering flexibility in manufacturing and repair processes across automotive, aerospace, and manufacturing sectors.

Application of MFS-300A Medium Frequency Induction Heating Machine

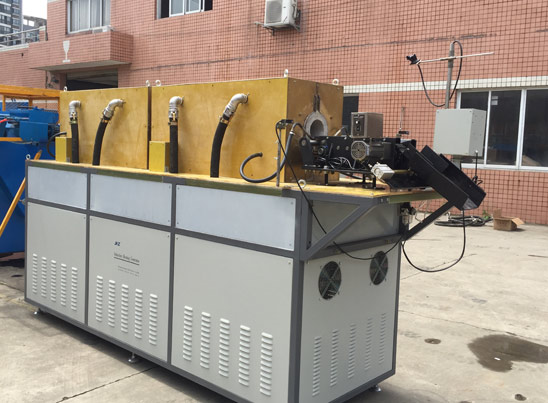

Forging: suitable for forging of steel, stainless steel, copper and aluminum of Ø60mm-Ø100mm
Hardening: suitable for hardening depth of 5-10 mm of Ø100-Ø250mm steel bar
Melting: suitable for smelting 250-300kg of non-ferrous metals
