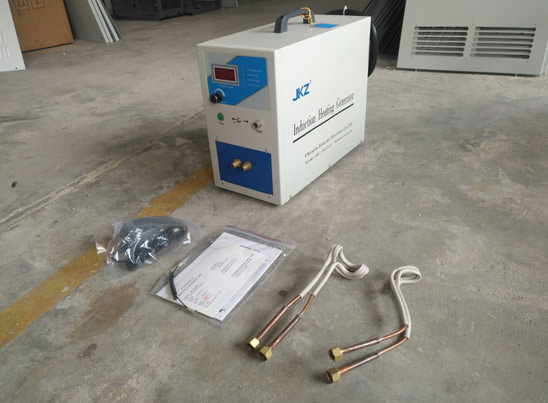

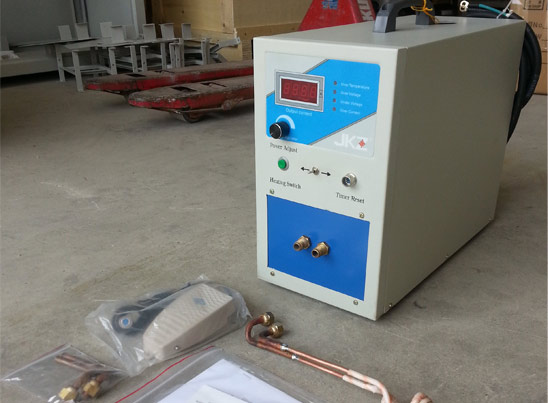

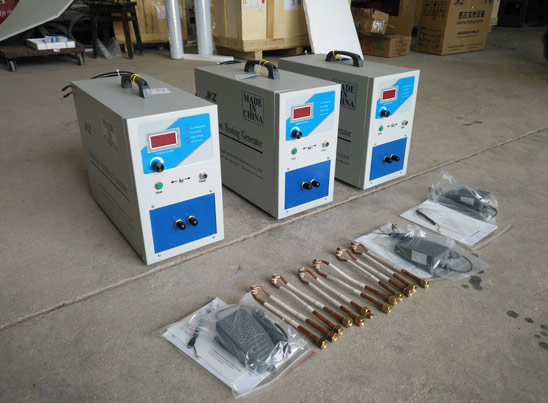

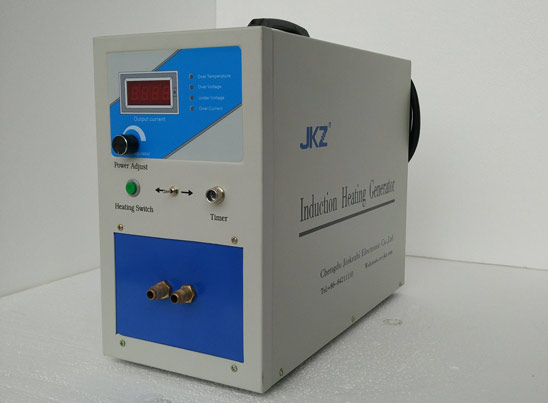

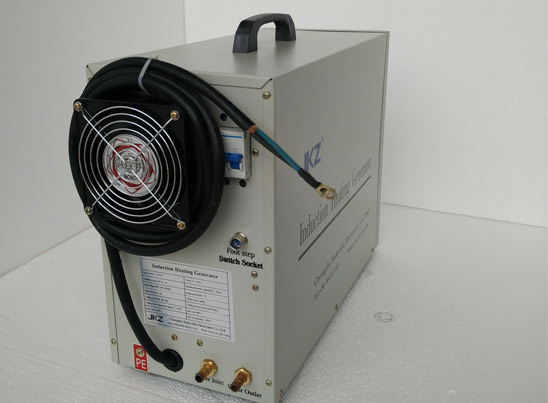

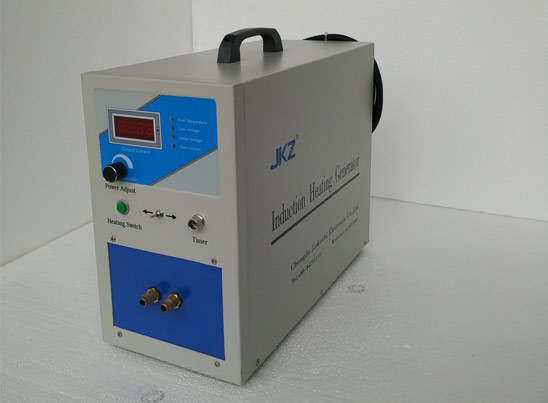

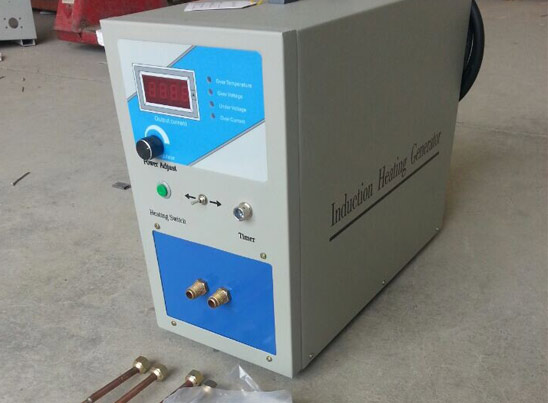

CX2015A full solid-state induction heating generator is designed to work at the frequency range of 50~120KHz and its output power range is 7.5KW. Adopting MOSFET from well-known large factories, this type of high frequency heater is suitable for brazing and quenching heating of small workpieces. The mature and stable circuits of the solid-state induction heater can ensure stable equipment performance. Remote control modules can also be customized according to customers' requirements; thus, it is easy to integrate this high-frequency induction heating equipment into various automated production lines.
Input voltage | 1 Phase 220V±10% 50/60HZ |
Input AC current | 34A |
Output power | 15KVA |
Output frequency | 50-120KHZ |
Duty cycle | 100% |
Power factor | ≥95% |
Cooling water pressure | 0.1-0.15 MPa |
Cooling water flow | ≥0.5 m³/Hour |
Brazing of length 6~40mm carbide and other materials
Welding of Ø6~15mm copper pipe
Non-ferrous metal smelting
Forging heating of Ø8-10mm steel rod
Hardening of small workpiece whole piece or surface layer.
