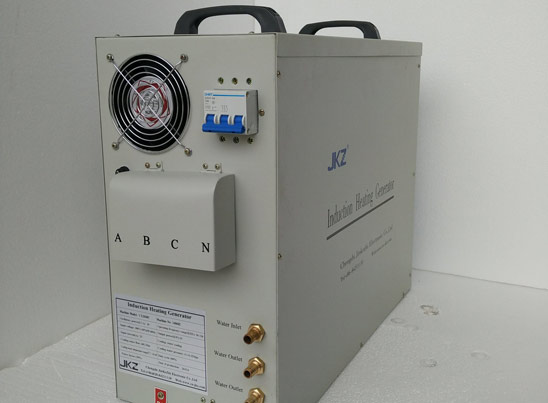

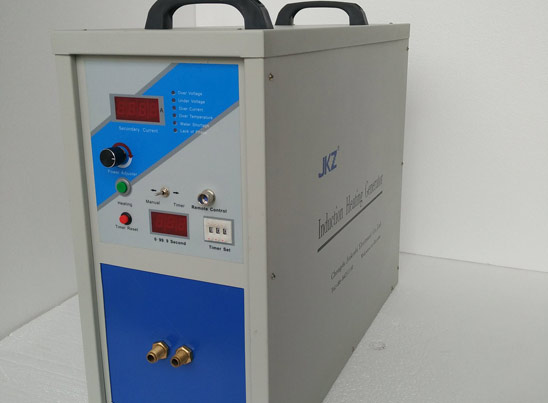

CX2060C induction heating machine, with the power of 30KW and frequency ranging from 50-120KHZ, is mainly used for cutter tips welding, saw blade tips brazing, copper tubes welding and forging heating, and surface heat treatment applications. Its reliable quality ensures the high efficiency of the machine's working status. Not only does this high frequency heater employ core components, MOSFET, from a well-known manufacturer, but CX2060C, capable of working as an effective induction pipe heater, is also equipped with a mature and stable circuit design. Furthermore, its universal design has also made it available for itself to work together with various production lines. Having a remote control system, you can simply conduct remote power adjustment and temperature control with the remote start/stop buttons.
Input voltage | 3 Phases 380V±10% 50/60HZ |
Input AC current | 45A |
Output power | 60KVA |
Output frequency | 50-120KHZ |
Duty cycle | 100% |
Power factor | ≥95% |
Cooling water pressure | 0.1-0.15 MPa |
Cooling water flow | ≥2.0 m³/Hour |
Brazing of length 6~40mm carbide and other materials
Welding of Ø6~15mm copper pipe
Non-ferrous metal smelting
Forging heating of Ø8-10mm steel rod
Hardening of small workpiece whole piece or surface layer.
